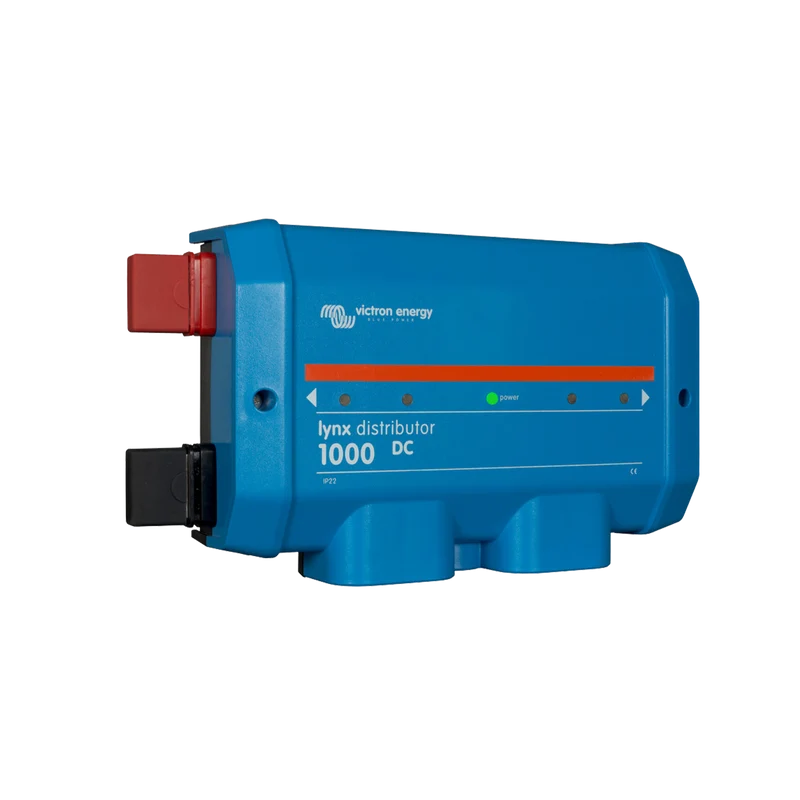

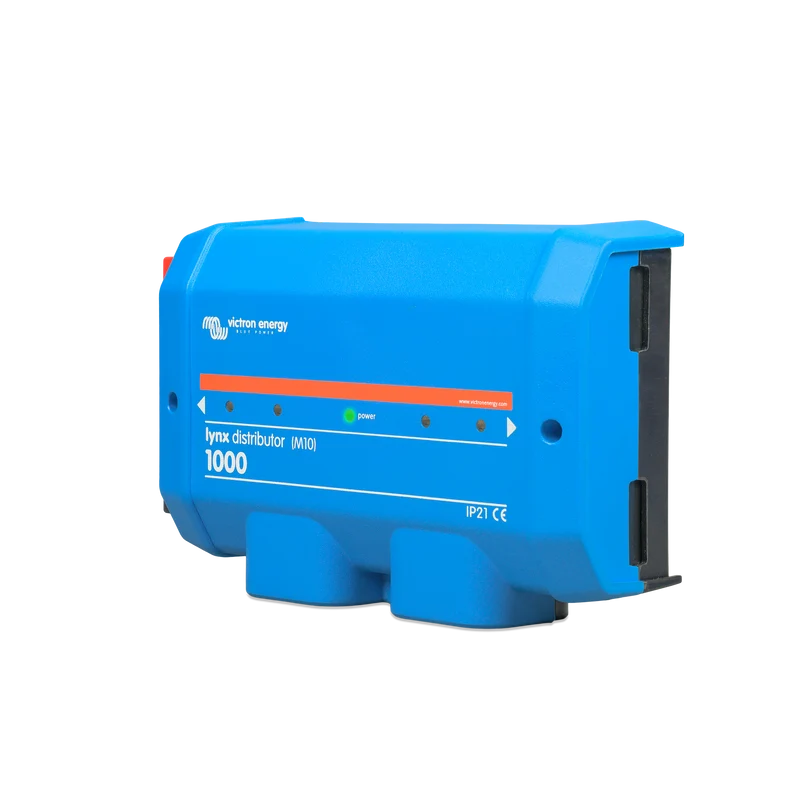

Victron Energy Lynx Distributor (M10) | LYN060102010

The Victron Energy Lynx Distributor (M10) LYN060102010 is a modular DC busbar for organized high-current power distribution in 12V, 24V and 48V systems. Rated for 1000A nominal current, it provides four fuse-protected positive connections, four negative connections and a ground connection, with front LEDs for power and fuse status.

Designed for the Victron Lynx distribution system, it can send fuse-status data to a Lynx Smart BMS through the included RJ10 cable. The M10 version uses M10 busbar interconnects, while fuse and cable connections remain M8. Its tinned-copper busbars and IP22 enclosure suit dry, protected off-grid, marine, vehicle and backup power installations.
